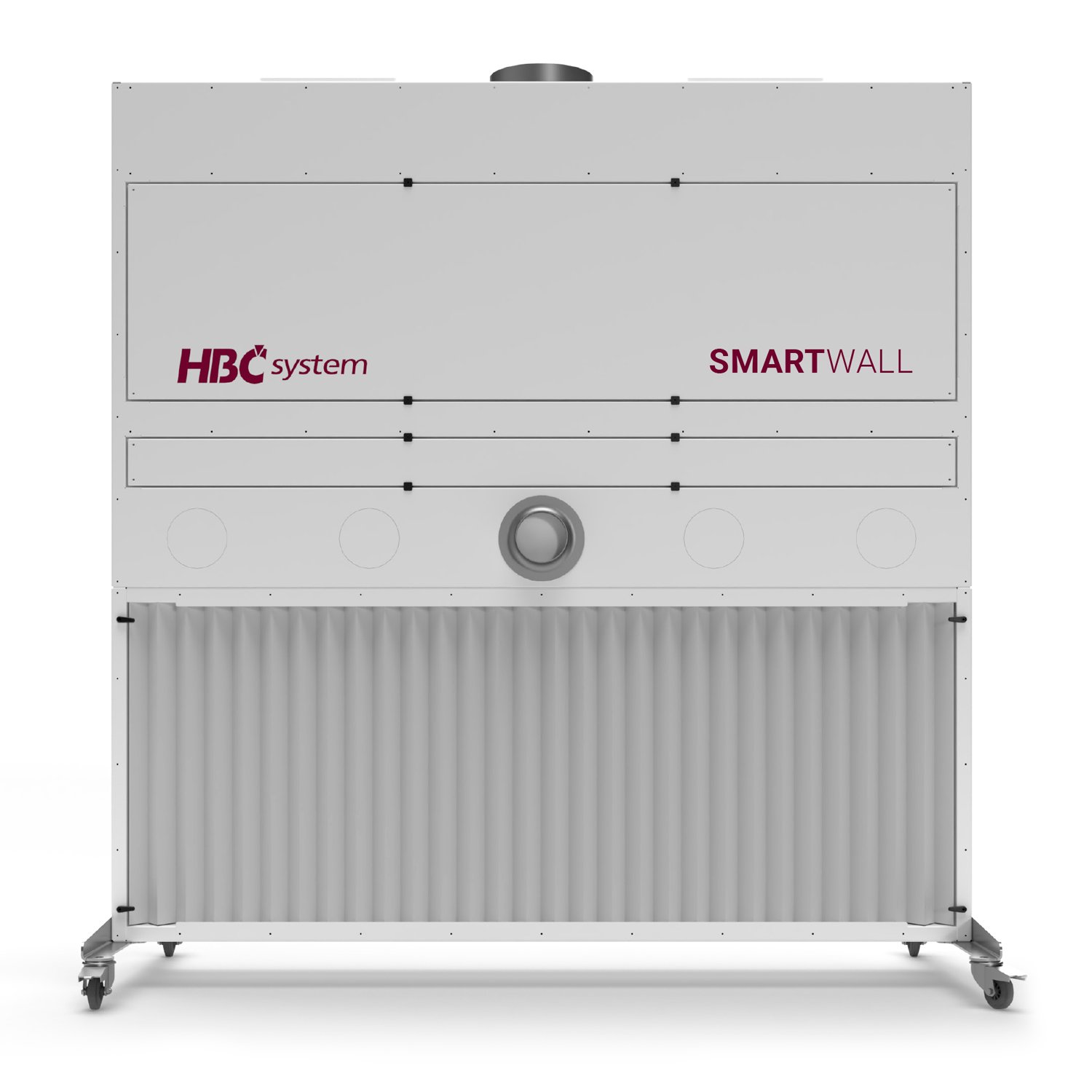

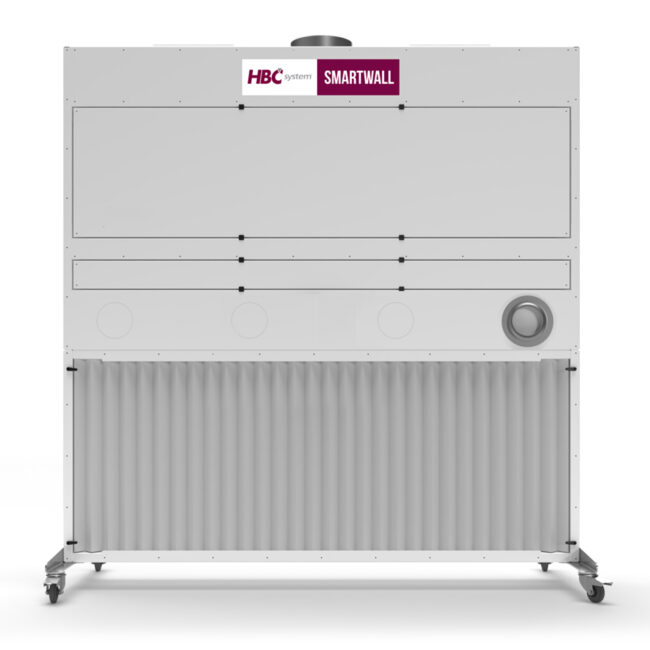

SmartWall

Part no. SM3000

The SmartWall is a unique state-of-the-art repair solution for air cleaning, doing minor damage non-structural repairs inside a workshop where dust & fume extraction is necessary.



What makes it unique?

✔   Connect up to 5 inlet hoses (such as the Hybrid Paint booth)
✔   Compliance with regulations
✔   Sustainable
✔   Adds flexibility to the workflow
✔   Lowers energy consumption by up to 96%

No limitations!

The Smartwall is designed to be connected to the Mobile Hybrid Spray booth. Eliminating having to run the exhaust tubes through a chimney outside of the building. Can be placed anywhere, and comes standard with wheels, so it is fully portable.

Technical Overview

1   Air Outlet
2   Fans – 220/110 Volt (ATEX) x 2
3   Activated Carbon Filter Cartridges x 26
4   Paint stop and particle inlet filters x 3
5   Connect up to 5 exhaust hoses / Hybrid Paint Booths
6   Paint Stop Inlet Filter x 2
7   Caster roller wheels x 4

Intelligent Monitoring System

Monitoring
VOC (Volatile Organic Compounds)
Air Speed
Humidity
Temperature
Differential pressure
Fan speed
Spray gun air feed supply
Electronic components

Full Catalogue

Weight200000 g
Dimensions200 × 30 × 200 cm
