Semi-Automatic Single Wheel Spray booth

Part no. WM500

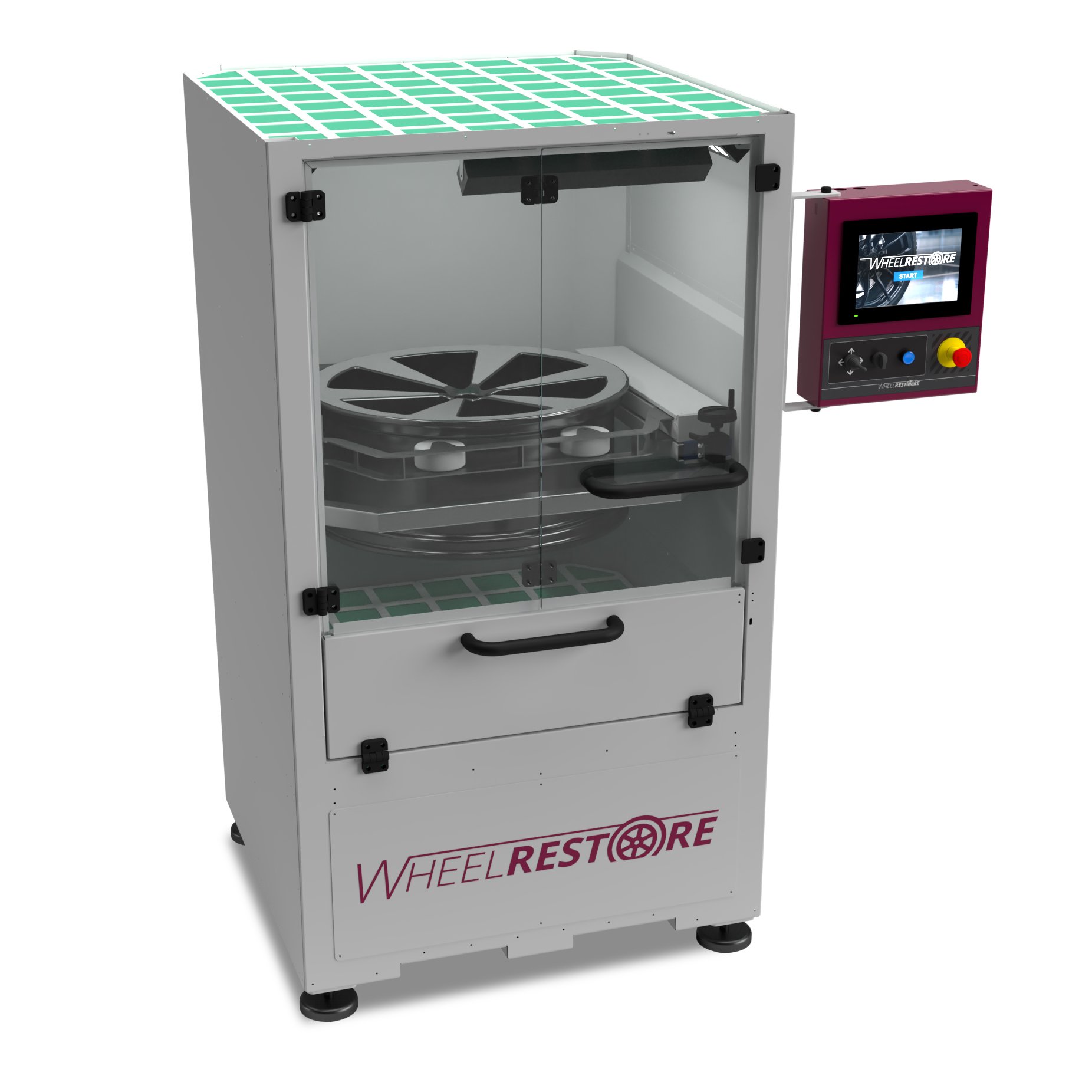

A single enclosed Wheel Spray Bay with internal light and wheel rollers, for manual application of primer, color, and clear coat. Built-in UV and IR curing system and ATEX-approved extraction.

Introducing the semi-automatic wheel painting machine – A patented, spray booth, capable of painting both sides of a wheel from start to finish. The footprint of the wheel painting machine is identical to that of our WR-DCM3 Diamond Cut Wheel Machine (1 x 1 x 1,75m), allowing it to paint wheels from 13 all the way up to 22 inches.

WM500 – video-screen-preview

Dual-Sided Painting

A vital part of its operation is the dual-sided (front/back) painting capability using either a regular spray gun OR an aerosol can – including the application of Primer, Base color, and Clearcoat.

360° Vertical Rotation

The wheel automatically rotates in a smooth motion ensuring a steady material application that is difficult to duplicate by hand – resulting in consistent results with no irregularities.

Wheel Paint Extraction

During the painting process, it is extremely important to have the best possible airflow in the Wheel Paint unit to avoid overspray and prevent the environment from being polluted with fumes and paint mist. The inlet filter takes care of clean inlet air to make sure no dust particles will affect the painting process. The airflow in the unit is around 0,3 m/s which is even higher than an average spray booth. The ATEX-approved extraction ensures the paint mist and fumes are discharged through the filters to an optional filter bank or spray booth.

Wheel Paint curing systems

The Wheel Paint machine is equipped with 2 types of curing systems. Infra-Red (IR) and Ultraviolet (UV) lamps are installed inside the machine to make sure the primer, base coat, and clear coat will be cured in the best and fastest way possible. Depending on the type of paint used which is selected in the program, the lamps are switched on for the required time to fully cure the layers applied. Once cured the rim can be taken out of the machine allowing the tire to be mounted. Curing times are between 35 seconds for UV up to 20 min for IR.


Height 1750mm
Width 1000mm
Length 1000mm

Power supply: 220 / 110 Volt / 16 A
Wheel size: 13”– 22”
Screen: 12“ touch panel display

Weight200000 g
Dimensions100 × 100 × 170 cm
